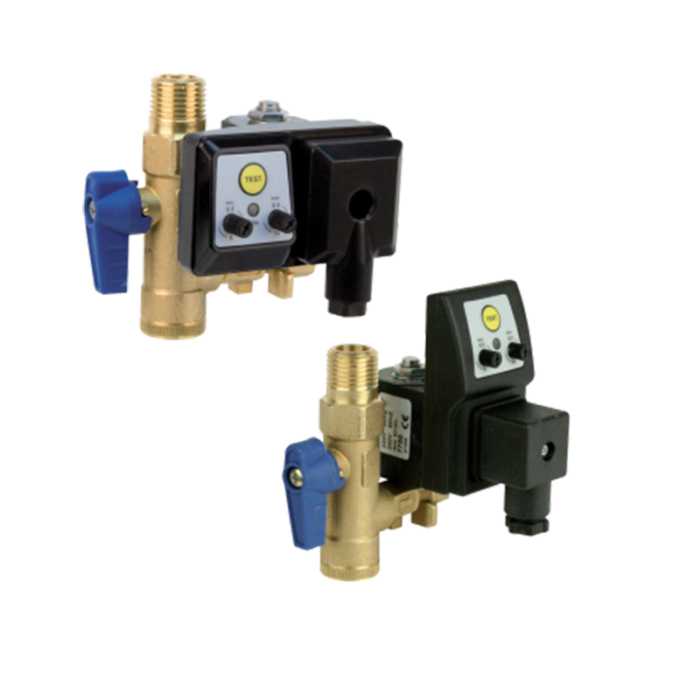

Timer controlled condensate drains

Timer controlled condensate drains are designed for reliable removal of condensate or other liquid from compressed air systems. Discharge intervals can be set with two adjustment knobs. Several types based on operating pressure and operating medium are available.

TCD16S / M – Timer controlled condensate drain

Technical data

  • Operating pressure 16 bar
  • Operating temperature range 1,5 – 65 °C
  • Mass 0,35 kg
  • Max. discharge capacity 95 l/h
  • Inlet connection G ½”
  • Outlet connection G ½”

TCD50S / M – Timer controlled condensate drain

Technical data

  • Operating pressure 50 bar
  • Operating temperature range 1,5 – 65 °C
  • Mass 0,35 kg
  • Max. discharge capacity 95 l/h
  • Inlet connection G ½”
  • Outlet connection G ½”
