Specifications:
- Heatless type – compact range
- Capacity up to 105 m³/h
- Pressure dew point -40°C

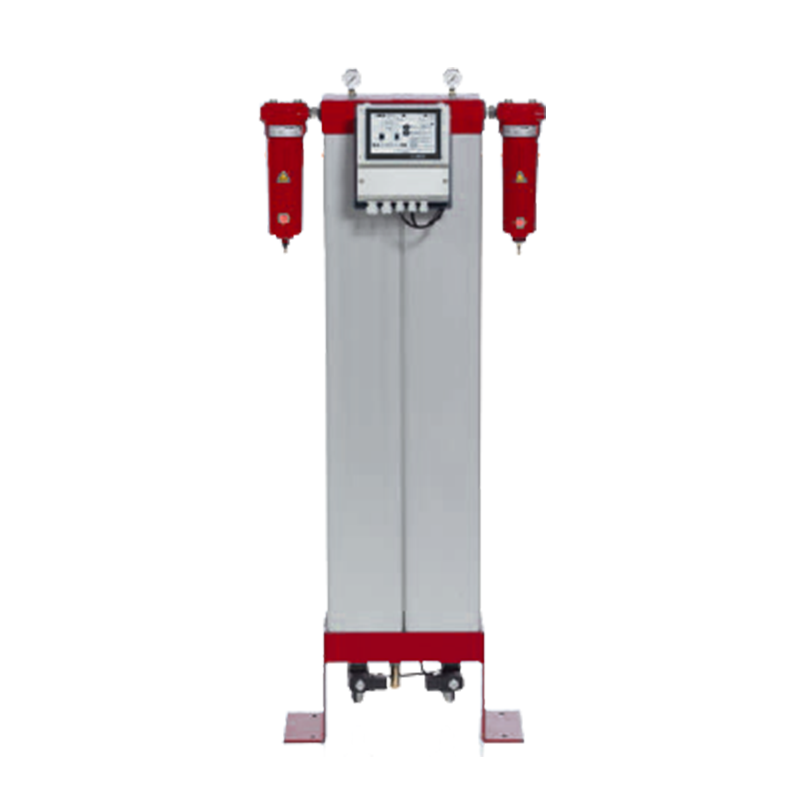

Heatless regenerated dryers compact – ACD compact
Technical information
| Dryer type | Capacity (m³/h) | Max. oper. pressure (bar) | Connection (inch) | Dimension (height) | Dimension (width) | Dimension (depth) |
|---|---|---|---|---|---|---|
| ACD1 | 6 | 16 | 3/8” | 404 | 352 | 120 |
| ACD2 | 12 | 16 | 3/8” | 638 | 352 | 120 |
| ACD3 | 24 | 16 | 3/8” | 1106 | 352 | 120 |
| ACD4 | 36 | 16 | 3/8” | 1574 | 352 | 120 |
| ACD5 | 60 | 16 | 1/2” | 1106 | 434 | 170 |
| ACD6 | 75 | 16 | 1/2” | 1340 | 434 | 170 |
| ACD7 | 105 | 16 | 3/4” | 1808 | 434 | 170 |
